- 스파이럴 탭

SFT(H)스파이럴탭(호모)

Spiral Fluted TapsFor Metric Threads

  • 막힌 구멍 가공용으로 절삭칩이 코일 형상으로 연속 발생하는 탄소강 및 합금강에 적합니다.

나사의 종류 : M 단위 : ㎜

공구 No.
EDP No.

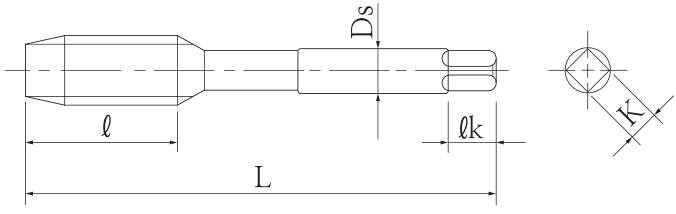

규격Thread Size 정도TAP Limit 전장L 날장 생크경Ds 각부장ℓk 각부폭K 홈수Flutes
2011036 M3 X 0.5 BH2 46 11 4 6 3.2 3
2011049 M4 X 0.75 BH3 52 13 5 7 4 3
2011048 M4 X 0.7 BH3 52 13 5 7 4 3
2011046 M4 X 0.5 BH2 52 13 5 7 4 3
201105A M5 X 0.8 BH3 60 15 5.5 7 4.5 3
2011059 M5 X 0.75 BH3 60 15 5.5 7 4.5 3
2011056 M5 X 0.5 BH2 60 15 5.5 7 4.5 3
201106B M6 X 1.0 BH3 62 17 6 7 4.5 3
2011069 M6 X 0.75 BH3 62 17 6 7 4.5 3
2011066 M6 X 0.5 BH2 62 17 6 7 4.5 3
201107B M7 X 1.0 BH3 65 17 6.2 8 5 3
2011079 M7 X 0.75 BH3 65 17 6.2 8 5 3
201108C M8 X 1.25 BH3 70 20 6.2 8 5 3
201108B M8 X 1.0 BH3 70 17 6.2 8 5 3
2011089 M8 X 0.75 BH3 70 17 6.2 8 5 3
201109D M9 X 1.5 BH3 75 22 7 8 5.5 3
201109C M9 X 1.25 BH3 75 20 7 8 5.5 3
201109B M9 X 1.0 BH3 75 17 7 8 5.5 3
201110D M10 X 1.5 BH3 75 22 7 8 5.5 3
201110C M10 X 1.25 BH3 75 22 7 8 5.5 3
201110B M10 X 1.0 BH3 75 17 7 8 5.5 3
2011109 M10 X 0.75 BH3 75 17 7 8 5.5 3
201111D M11 X 1.5 BH3 80 22 8 9 6 3
201111C M11 X 1.25 BH3 80 22 8 9 6 3
201111B M11 X 1.0 BH3 80 18 8 9 6 3
201112E M12 X 1.75 BH3 82 24 8.5 9 6.5 3
201112D M12 X 1.5 BH3 82 22 8.5 9 6.5 3
201112C M12 X 1.25 BH3 82 22 8.5 9 6.5 3
201112B M12 X 1.0 BH3 82 18 8.5 9 6.5 3
2011129 M12 X 0.75 BH3 82 18 8.5 9 6.5 3
201113D M13 X 1.5 BH3 85 22 9.5 10 7 3
201113C M13 X 1.25 BH3 85 22 9.5 10 7 3
201113B M13 X 1.0 BH3 85 18 9.5 10 7 3
201114F M14 X 2.0 BH3 88 26 10.5 11 8 3
201114D M14 X 1.5 BH3 88 22 10.5 11 8 3
201114C M14 X 1.25 BH3 88 22 10.5 11 8 3
201114B M14 X 1.0 BH3 88 18 10.5 11 8 3
201115F M15 X 2.0 BH3 90 27 10.5 11 8 3
201115D M15 X 1.5 BH3 90 22 10.5 11 8 3
201115C M15 X 1.25 BH3 90 22 10.5 11 8 3
201115B M15 X 1.0 BH3 90 18 10.5 11 8 3
201116F M16 X 2.0 BH3 95 27 12.5 13 10 3
201116D M16 X 1.5 BH3 95 22 12.5 13 10 3
201116C M16 X 1.25 BH3 95 22 12.5 13 10 3
201116B M16 X 1.0 BH3 95 18 12.5 13 10 3
201117D M17 X 1.5 BH3 95 22 13 13 10 3
201117B M17 X 1.0 BH3 95 18 13 13 10 3
201118G M18 X 2.5 BH4 100 30 14 14 11 3
201118F M18 X 2.0 BH4 100 27 14 14 11 3
201118D M18 X 1.5 BH3 100 27 14 14 11 3
201118C M18 X 1.25 BH3 95 27 14 14 11 3
201118B M18 X 1.0 BH3 95 18 14 14 11 3
201119D M19 X 1.5 BH3 105 27 14 14 11 3
201119C M19 X 1.25 BH3 95 27 14 14 11 3
201119B M19 X 1.0 BH3 95 18 14 14 11 3
201120G M20 X 2.5 BH4 105 32 15 15 12 3
201120F M20 X 2.0 BH4 105 27 15 15 12 3
201120D M20 X 1.5 BH3 105 27 15 15 12 3
201120C M20 X 1.25 BH3 95 27 15 15 12 3
201120B M20 X 1.0 BH3 95 20 15 15 12 3
201122G M22 X 2.5 BH4 115 32 17 16 13 3
201122F M22 X 2.0 BH4 115 27 17 16 13 3
201122D M22 X 1.5 BH3 115 27 17 16 13 3
201122C M22 X 1.25 BH3 100 27 17 16 13 3
201122B M22 X 1.0 BH3 100 20 17 16 13 3
201123F M23 X 2.0 BH4 120 27 19 18 15 4
201123D M23 X 1.5 BH3 120 27 19 18 15 4
201123C M23 X 1.25 BH3 100 27 19 18 15 4
201123B M23 X 1.0 BH3 100 20 19 18 15 4
201124H M24 X 3.0 BH4 120 35 19 18 15 4
201124G M24 X 2.5 BH4 120 35 19 18 15 4
201124F M24 X 2.0 BH4 120 27 19 18 15 4
201124D M24 X 1.5 BH3 120 27 19 18 15 4
201124C M24 X 1.25 BH3 100 27 19 18 15 4
201124B M24 X 1.0 BH3 100 20 19 18 15 4
201125H M25 X 3.0 BH4 125 35 19 18 15 4
201125G M25 X 2.5 BH4 125 35 19 18 15 4
201125F M25 X 2.0 BH4 125 27 19 18 15 4
201125D M25 X 1.5 BH3 125 27 19 18 15 4
201125C M25 X 1.25 BH3 100 27 19 18 15 4
201125B M25 X 1.0 BH3 100 20 19 18 15 4
201126H M26 X 3.0 BH4 125 35 20 18 15 4
201126F M26 X 2.0 BH4 125 27 20 18 15 4
201126D M26 X 1.5 BH3 125 27 20 18 15 4
201126B M26 X 1.0 BH3 100 20 20 18 15 4
201127H M27 X 3.0 BH4 130 35 20 18 15 4
201127F M27 X 2.0 BH4 130 27 20 18 15 4
201127D M27 X 1.5 BH3 130 27 20 18 15 4
201127B M27 X 1.0 BH3 100 20 20 18 15 4
201128H M28 X 3.0 BH4 130 35 21 20 17 4
201128F M28 X 2.0 BH4 130 27 21 20 17 4
201128D M28 X 1.5 BH3 130 27 21 20 17 4
201128B M28 X 1.0 BH3 105 22 21 20 17 4
201130I M30 X 3.5 BH4 135 35 23 20 17 4
201130H M30 X 3.0 BH4 135 35 23 20 17 4
201130G M30 X 2.5 BH4 135 35 23 20 17 4
201130F M30 X 2.0 BH4 135 27 23 20 17 4
201130D M30 X 1.5 BH3 135 27 23 20 17 4
201130B M30 X 1.0 BH3 105 22 23 20 17 4
201132I M32 X 3.5 BH4 140 35 24 22 19 4
201132H M32 X 3.0 BH4 140 35 24 22 19 4
201132F M32 X 2.0 BH4 135 27 24 22 19 4
201132D M32 X 1.5 BH4 135 27 24 22 19 4
201132B M32 X 1.0 BH3 105 22 24 22 19 4
201133I M33 X 3.5 BH4 145 35 25 22 19 4
201133H M33 X 3.0 BH4 145 35 25 22 19 4
201133F M33 X 2.0 BH4 135 27 25 22 19 4
201133D M33 X 1.5 BH4 135 27 25 22 19 4
201133B M33 X 1.0 BH3 110 22 25 22 19 4
201134I M34 X 3.5 BH4 145 35 26 24 21 4
201134H M34 X 3.0 BH4 145 35 26 24 21 4


나사의 종류 : U 단위 : ㎜

공구 No.
EDP No.
규격Thread Size 정도TAP Limit 전장L 날장 생크경Ds 각부장ℓk 각부폭K 홈수Flutes
201210B 1/4 - 20UNC BH3 62 17 6 7 4.5 3
2012109 1/4 - 28UNF BH3 62 17 6 7 4.5 3
201211C 5/16 - 18UNC BH3 70 20 6.1 8 5 3
201211A 5/16 - 24UNF BH3 70 20 6.1 8 5 3
201212D 3/8 - 16UNC BH3 75 22 7 8 5.5 3
201212A 3/8 - 24UNF BH3 75 20 7 8 5.5 3
201213E 7/16 - 14UNC BH3 80 22 8 9 6 3
201213B 7/16 - 20UNF BH3 80 20 8 9 6 3
201214F 1/2 - 13UNC BH3 85 25 9 10 7 3
201214G 1/2 - 12UN BH3 85 25 9 10 7 3
201214B 1/2 - 20UNF BH3 85 20 9 10 7 3
201215G 9/16 - 12UNC BH3 90 25 10.5 11 8 3
201215C 9/16 - 18UNF BH3 90 20 10.5 11 8 3
201216H 5/8 - 11UNC BH4 95 28 12 12 9 3
201216C 5/8 - 18UNF BH3 95 20 12 12 9 3
201218I 3/4 - 10UNC BH4 105 30 14 14 11 3
201218D 3/4 - 16UNF BH3 105 22 14 14 11 3
201220J 7/8 - 9UNC BH4 115 32 17 16 13 3
201220E 7/8 - 14UNF BH4 115 28 17 16 13 3
201221K 1" - 8UNC BH4 125 36 20 18 15 4
201221G 1" - 12UNF BH4 125 28 20 18 15 4
201221E 1" - 14UNS BH4 125 28 20 18 15 4
201221D 1" - 16UN BH3 125 28 20 18 15 4
201222G 1 1/16 - 12UN BH4 130 30 22 20 17 4
201223L 1 1/8 - 7UNC BH4 135 40 22 20 17 4
201223K 1 1/8 - 8UN BH4 135 40 22 20 17 4
201223G 1 1/8 - 12UNF BH4 135 30 22 20 17 4
201250G 1 3/16 - 12UN BH4 145 30 24 22 19 4
201224L 1 1/4 - 7UNC BH4 145 40 24 22 19 4
201224K 1 1/4 - 8UN BH4 145 40 24 22 19 4
201224G 1 1/4 - 12UNF BH4 145 30 24 22 19 4
201225G 1 5/16 - 12UN BH4 145 30 26 24 21 4
201226M 1 3/8 - 6UNC BH5 155 50 26 24 21 4
201226K 1 3/8 - 8UN BH4 155 40 26 24 21 4
201226G 1 3/8 - 12UNF BH4 155 30 26 24 21 4
201228M 1 1/2 - 6UNC BH5 160 50 30 26 23 4
201228K 1 1/2 - 8UN BH4 160 40 30 26 23 4
201228G 1 1/2 - 12UNF BH4 160 30 30 26 23 4
201229K 1 5/8 - 8UN BH4 160 40 32 30 26 4
201229G 1 5/8 - 12UN BH4 160 30 32 30 26 4
201230N 1 3/4 - 5UNC BH5 175 54 35 30 26 4
201230K 1 3/4 - 8UN BH4 175 40 35 30 26 4
201230G 1 3/4 - 12UN BH4 160 30 35 30 26 4
201231K 1 7/8 - 8UN BH4 180 40 35 30 26 4
201231G 1 7/8 - 12UN BH4 165 35 35 30 26 4
201232O 2" - 4 1/2UNC BH5 195 67 40 35 32 4
201232K 2" - 8UN BH4 195 50 40 35 32 4
201232G 2" - 12UN BH4 165 40 40 35 32 4
201233O 2 1/4 - 4 1/2UNC BH5 205 67 44 38 35 4
201233K 2 1/4 - 8UN BH4 205 54 44 38 35 4
201233G 2 1/4 - 12UN BH4 165 40 44 38 35 4
201234P 2 1/2 - 4UNC BH6 225 65 48 42 38 4
201234K 2 1/2 - 8UN BH4 215 54 48 42 38 4
201234G 2 1/2 - 12UN BH4 170 30 48 42 38 4
201235K 2 3/4 - 8UN BH4 225 54 55 44 41 6
201236K 3" - 8UN BH4 225 54 58 50 46 6
